russ
 Post subject:
PostPosted: Mon Mar 20, 2006 2:16 am
Offline
Cocobolo
Cocobolo
User avatar

Joined: Sat Jan 08, 2005 3:32 am
Posts: 251
Location: Netherlands
I sent a few pics over to BobC today, to let him know that some of the wood he sends me doesn't just end up as sawdust....thought I might as well post them here too!

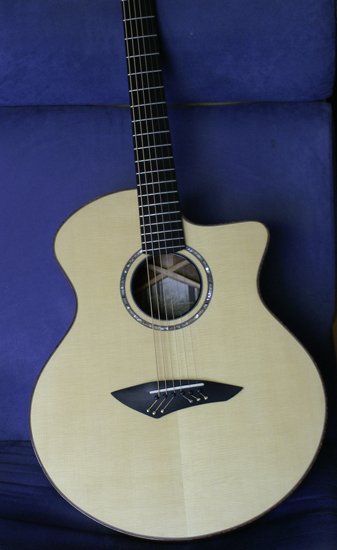

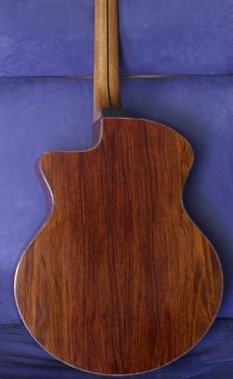

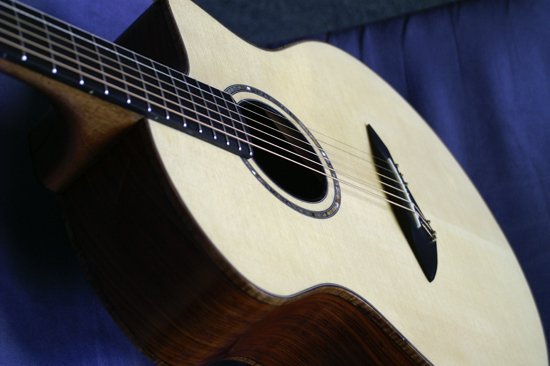

This one is an SJC model in cocobolo with curly eucalyptus binding and an Italian spruce top. The rosette is green ab, and the soundhole is bound in ebony.










Top
 Profile

Don Williams
 Post subject:
PostPosted: Mon Mar 20, 2006 3:19 am
Offline
Contributing Member
Contributing Member

Joined: Mon Dec 27, 2004 11:25 pm
Posts: 7207
Location: United States
Nice! You did that Zootman wood proud!

_________________
"I want to know what kind of pickups Vince Gill uses in his Tele, because if I had those, as good of a player as I am, I'm sure I could make it sound like that.
Only badly."
Top
 Profile

LanceK
 Post subject:
PostPosted: Mon Mar 20, 2006 3:22 am
Offline
Site Admin
User avatar

Joined: Mon Dec 27, 2004 5:02 am
Posts: 8553
Location: United States
First name: Lance
Last Name: Kragenbrink
City: Vandercook Lake
State: Michigan
Zip/Postal Code: 49203
Country: USA
Focus: Build
Status: Semi-pro
Russ, very orginal shape, great job!
Love the bridge!

_________________
Support the OLF! Bookmark our STEWMAC link Today!
Lance@LuthiersForum.com
Top
 Profile

Alain Desforges
 Post subject:
PostPosted: Mon Mar 20, 2006 3:45 am
Offline
Brazilian Rosewood
Brazilian Rosewood
User avatar

Joined: Tue Dec 20, 2005 7:46 am
Posts: 2227
Location: Canada
Love that shape, very sensual...   Gorgeous guitar. The cocobolo, eucaliptus and abalone complement themselves superbly! Outstanding! Keep'em coming Russ.

_________________
I'd like to be able to prove, just for once, that money wouldn't make me happy...
Top
 Profile

Serge Poirier
 Post subject:
PostPosted: Mon Mar 20, 2006 3:50 am
Offline
Brazilian Rosewood
Brazilian Rosewood

Joined: Sun Dec 25, 2005 6:32 am
Posts: 7774
Location: Canada
Russ, awesome design, superb bridge and combination of wood on the entire guitar, sensual and refined are the words that come to mind! Great job sir!


Top
 Profile

Andy Zimmerman
 Post subject:
PostPosted: Mon Mar 20, 2006 3:56 am
Offline
Brazilian Rosewood
Brazilian Rosewood
User avatar

Joined: Fri Jun 10, 2005 9:51 am
Posts: 2148
Location: San Diego, CA
First name: Andy
Last Name: Zimmerman
City: San Diego
State: CA
Zip/Postal Code: 92103
Country: United States
Focus: Build
Beautiful!!!
Awesome bridge and cutaway

_________________
Andy Z.
http://www.lazydogguitars.com
Top
 Profile

old man
 Post subject:
PostPosted: Mon Mar 20, 2006 4:23 am
Offline
Brazilian Rosewood
Brazilian Rosewood
User avatar

Joined: Mon Jul 04, 2005 7:13 am
Posts: 3270
Location: United States


Very nice!!!!

Ron

_________________
OLD MAN formerly (and formally) known as:

Ron Wisdom

Somewhere in the middle of Arkansas......
Top
 Profile

CarltonM
 Post subject:
PostPosted: Mon Mar 20, 2006 4:35 am
Offline
Brazilian Rosewood
Brazilian Rosewood

Joined: Tue Feb 15, 2005 10:31 am
Posts: 3134
Location: United States
I like it! Interesting design and great workmanship! Are you rich and famous yet?


Top
 Profile

MSpencer
 Post subject:
PostPosted: Mon Mar 20, 2006 4:42 am
Offline
Koa
Koa

Joined: Sat Feb 11, 2006 10:40 am
Posts: 1286
Location: United States
Wow, that is beyond really nice, awesome!

Mike
White Oak, Texas
Top
 Profile

John Mayes
 Post subject:
PostPosted: Mon Mar 20, 2006 4:49 am
Offline
Brazilian Rosewood
Brazilian Rosewood
User avatar

Joined: Sat Jan 08, 2005 3:37 am
Posts: 2670
Location: United States
First name: John
Last Name: Mayes
City: Norman
State: OK
Focus: Build
Status: Professional
cool bridge. John W does great work with that cnc eh?

_________________
John Mayes
http://www.mayesluthier.com
Top
 Profile

Anthony Z
 Post subject:
PostPosted: Mon Mar 20, 2006 4:52 am
Offline
Brazilian Rosewood
Brazilian Rosewood
User avatar

Joined: Mon Jun 13, 2005 6:53 am
Posts: 2104
Location: Toronto, Ontario, Canada
First name: Anthony
Last Name: Zlahtic
City: Toronto
Country: Canada
Focus: Build
Status: Amateur
That is just drop dead gorgeous - shape, materials combination....
Top
 Profile

csullivan
 Post subject:
PostPosted: Mon Mar 20, 2006 5:00 am
Offline
Cocobolo
Cocobolo

Joined: Thu Jul 28, 2005 5:52 am
Posts: 334
Location: United States
Russ, that's a very beautiful instrument. The level of craftsmanship is
impeccable. I just can't believe what I see on this forum almost every day.
It's humbling. I want to know more about how it's braced, how it sounds,
and what your method of voicing/tuning is. Other than its obvious
beauty, what's your goal/reason for the asymetric bridge?
Craig
Top
 Profile

Todd Rose
 Post subject:
PostPosted: Mon Mar 20, 2006 5:21 am
Offline
Contributing Member
Contributing Member
User avatar

Joined: Fri Nov 11, 2005 3:32 am
Posts: 2687
Location: Ithaca, New York, United States
Really cool guitar, Russ. I love the shape. I wanna play that baby.

I got some of that curly eucalyptus binding from Bob, too. I haven't used it yet - it's nice to see it on a guitar. Great stuff.

_________________
Todd Rose
Ithaca, NY

https://www.dreamingrosesecobnb.com/todds-art-music

https://www.facebook.com/ToddRoseGuitars/
Top
 Profile

russ
 Post subject:
PostPosted: Mon Mar 20, 2006 5:44 am
Offline
Cocobolo
Cocobolo
User avatar

Joined: Sat Jan 08, 2005 3:32 am
Posts: 251
Location: Netherlands
Since a few people are asking about this, I will clarify a bit as to how this goes together.

The bridge itself is in ebony, and the shape is something I modeled in 3-D software. It took a bit of tweaking to get this to fit in an average sized bridge blank!

As John Mayes pointed out, I am smart/lazy enough to have John W. CNC machine the bridges for me, and he does an excellent job!

The bridge design is fundamentally based on the pinless bridge of Steve Klein. The shape is a more "organic" development of the Klein shape, and is quite similar (I found out afterward...great minds think alike... ) to the bridge shape used by Michael Bashkin on his fine guitars.

The strings are held via 2mm stainless steel pins, which the ball ends of the strings fit over. The strings then pass under 5-40 caphead screws before passing over the saddle. These screws allow a tiny bit of adjustment in the break angle over the saddle, and serve as string guides as well.

As far as the body shape...this is a result of looking to build something a bit "different". It evolved by playing with shapes (specifically making the lower bout rounder than normal). The cutaway is a bit of a mutation of the Macaferri cutaway. I am currently building a similar guitar, only with a Florentine cutaway.

That should just about cover it!

Thanks for all the compliments...I appreciate it very much, especially considering the amount of talent here!
russ38796.6926967593
Top
 Profile

PaulB
 Post subject:
PostPosted: Mon Mar 20, 2006 8:26 am
Offline
Koa
Koa

Joined: Wed Jan 05, 2005 10:43 pm
Posts: 1124
Location: Australia
First name: Paul
Last Name: Burns
City: Forster
State: NSW
Zip/Postal Code: 2428
Country: Australia
Focus: Build
Status: Amateur
Beautifully done!

Man, the guitars around here a just getting better and better. Where will it end?


Top
 Profile

Billy T
 Post subject:
PostPosted: Mon Mar 20, 2006 5:21 pm
Offline
Brazilian Rosewood
Brazilian Rosewood
User avatar

Joined: Sun Dec 25, 2005 7:58 pm
Posts: 2946
Location: United States
Wow! That's nice!

_________________
Billy Dean Thomas
Covina, CA

"Multi famam, conscientiam, pauci verentur."
(Many fear their reputation, few their conscience)
Top
 Profile

Kim
 Post subject:
PostPosted: Mon Mar 20, 2006 10:08 pm
Offline
Brazilian Rosewood
Brazilian Rosewood
User avatar

Joined: Thu Aug 18, 2005 2:21 am
Posts: 2924
Location: Changes when ever I move..Australia
Focus: Build
Status: Amateur
Lovely Russ, really lovely. Curves, class and sophistication, what a package, simply lovely Russ well done.

Cheers Kim
Top
 Profile

Red Ennis
 Post subject:
PostPosted: Tue Mar 21, 2006 12:06 am
Offline
Mahogany
Mahogany

Joined: Fri Feb 10, 2006 11:56 pm
Posts: 62
Location: United States
Bee-u-ti-ful, I'd sure like to see the bracing inside.
Top
 Profile

Bobc
 Post subject:
PostPosted: Tue Mar 21, 2006 12:14 am
Offline
Brazilian Rosewood
Brazilian Rosewood
User avatar

Joined: Mon Dec 27, 2004 9:42 pm
Posts: 4217
Location: Buffalo, NY
First name: Robert
Last Name: Cefalu
City: Buffalo
State: NY
Zip/Postal Code: 14217
Country: US
Russ as I said in my e-mail very beautiful work. It's allways a pleasure to work with you my friend.

_________________
Beautiful and unusual tone woods at a reasonable price.
http://www.rctonewoods.com/RCT_Store
The Zootman
1109 Military Rd.
Kenmore, NY 14217
(716) 874-1498
Top
 Profile

Arnt Rian
 Post subject:
PostPosted: Tue Mar 21, 2006 12:26 am
Offline
Contributing Member
Contributing Member
User avatar

Joined: Fri Aug 26, 2005 5:49 pm
Posts: 2915
Location: Norway
Hey, that is relly nice!

You mentioned your bridge is similar to Klein's, is the bracing also similar? I second the request for pictures of the insides...

_________________
Rian Gitar og Mandolin
Top
 Profile

russ
 Post subject:
PostPosted: Tue Mar 21, 2006 1:19 am
Offline
Cocobolo
Cocobolo
User avatar

Joined: Sat Jan 08, 2005 3:32 am
Posts: 251
Location: Netherlands
Red/Arnt,

The bracing of the top is basically "normal" (x-brace, fingerbraces, etc.)and not at all like the Klein/Kasha bracing.

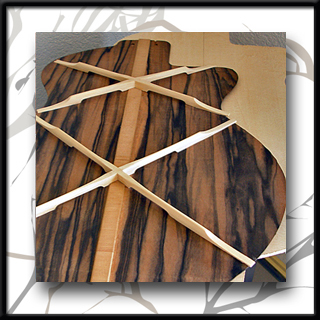

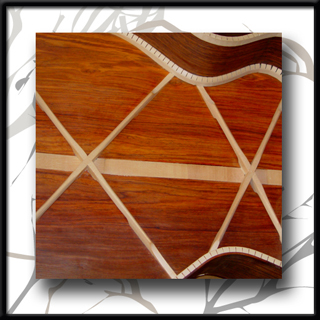

On the back, I used a double X-brace as seen below:





Thanks again for all the positive feedback on this guitar...I appreciate it!



Top
 Profile

Dave Anderson
 Post subject:
PostPosted: Tue Mar 21, 2006 2:38 am
Offline
Brazilian Rosewood
Brazilian Rosewood
User avatar

Joined: Wed Jun 22, 2005 10:11 am
Posts: 2761
Location: Tampa Bay
First name: Dave
Last Name: Anderson
City: Clearwater
State: Florida
Zip/Postal Code: 33755
Country: United States
Excellant job !Those Euc. bindings really stand out.Very nice!
I like the ebony soundhole too! DaveAndy38797.4460532407

_________________
Anderson Guitars
Clearwater,Fl. 33755
Top
 Profile

Serge Poirier
 Post subject:
PostPosted: Tue Mar 21, 2006 4:59 am
Offline
Brazilian Rosewood
Brazilian Rosewood

Joined: Sun Dec 25, 2005 6:32 am
Posts: 7774
Location: Canada


Top
 Profile

russ
 Post subject:
PostPosted: Wed Mar 22, 2006 11:45 pm
Offline
Cocobolo
Cocobolo
User avatar

Joined: Sat Jan 08, 2005 3:32 am
Posts: 251
Location: Netherlands
[QUOTE=CarltonM] I like it! Interesting design and great workmanship! Are you rich and famous yet? [/QUOTE]

Neither! Although I did pick up some lottery tickets yesterday...15 million euro sure would buy a lot of wood!!



Top
